Product number: 112315

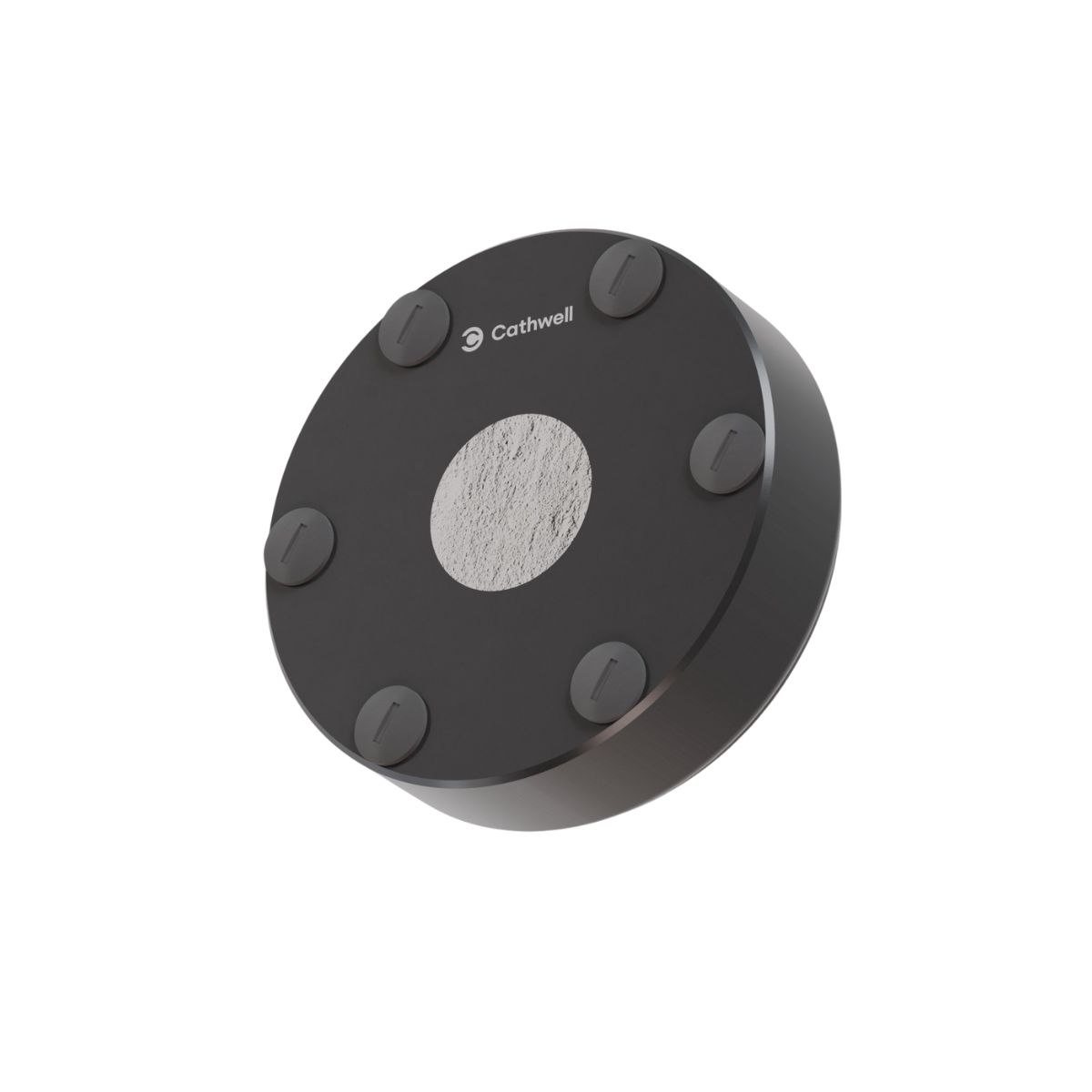

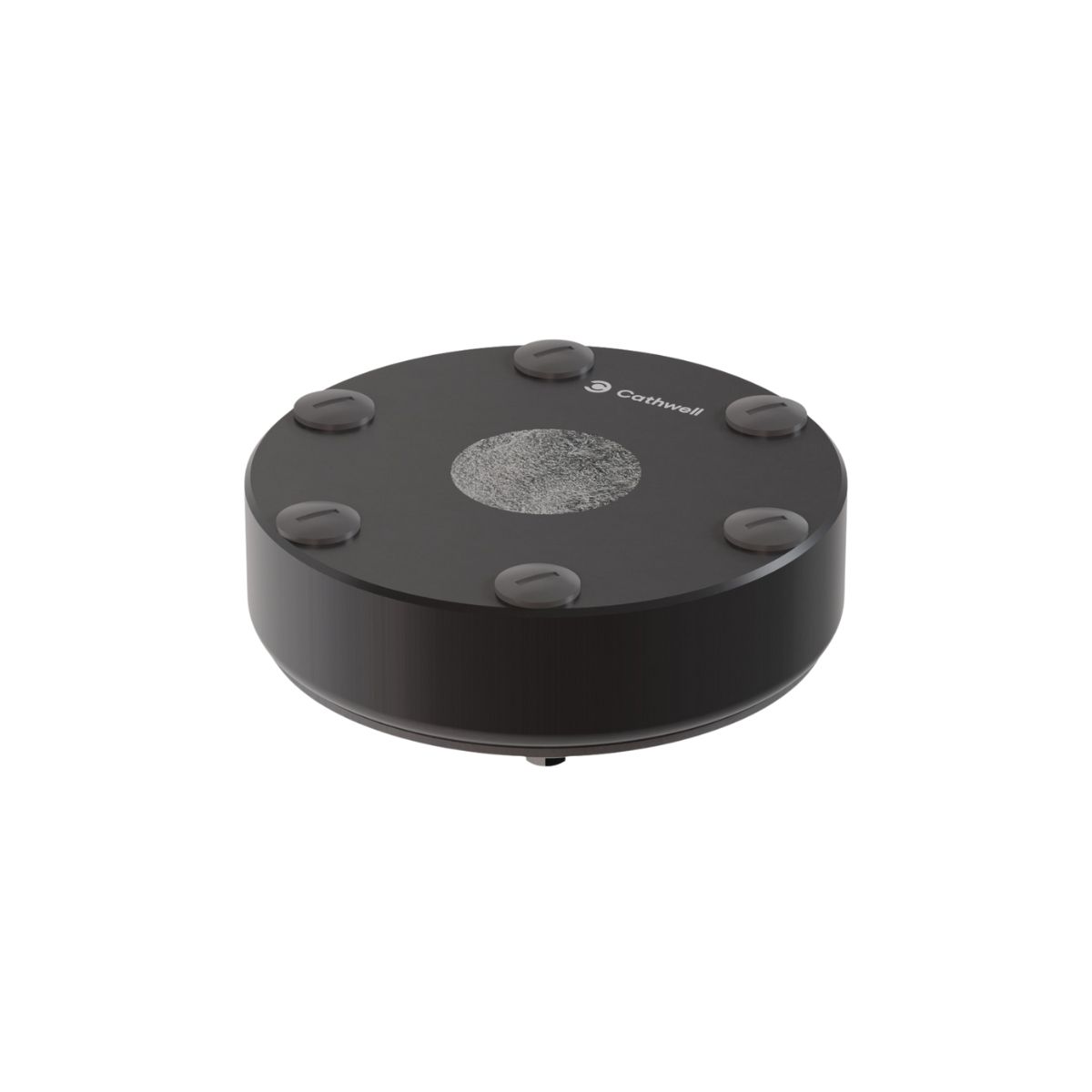

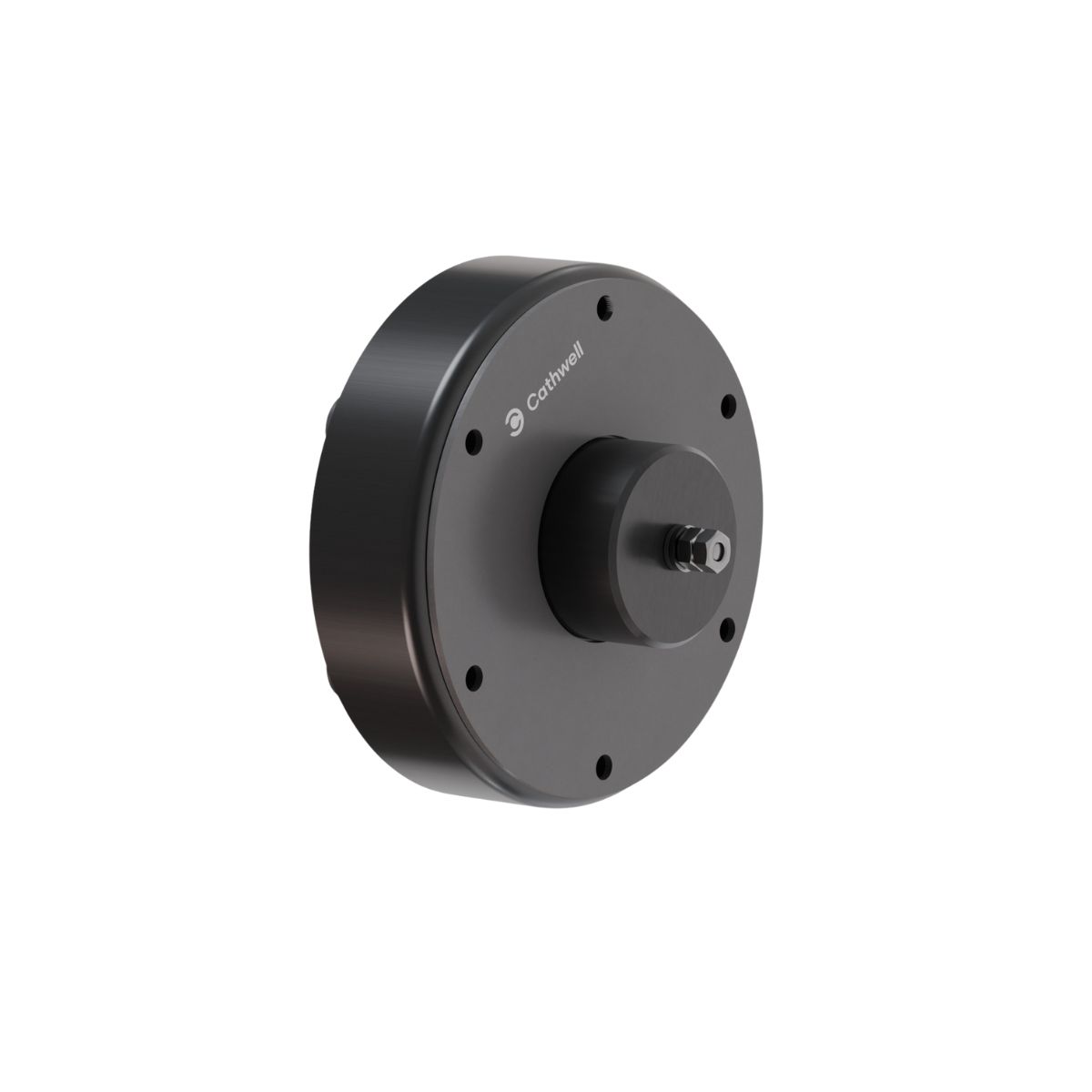

ICCP reference cell Ø190 Zn, ACG

ICCP reference cell designed for cathodic protection of ship hulls and marine offshore floaters. Suitable for recessed installation and intended for long-term seawater operation.

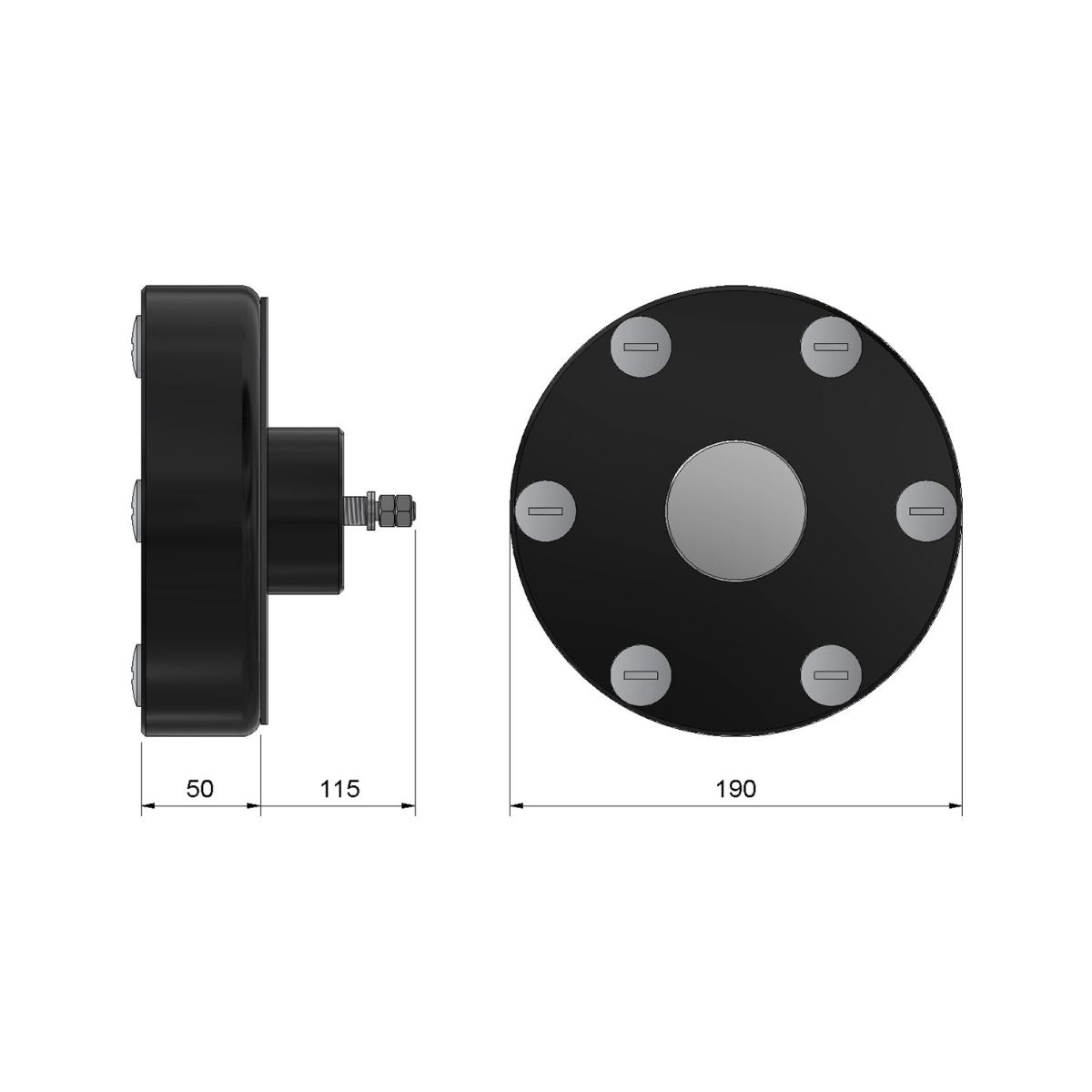

The reference cell has a an outer diameter of 190 mm and comes complete with replacement accessories.

Normally in stock

Any questions about this product? Contact us

Specification

Zinc-based sensing electrode with +/-30 mV measurement accuracy. Designed for use in seawater and saline environments. Outer diameter of 190 mm. Polyoxymethylene (POM) encapsulated body providing mechanical protection and electrical insulation for seawater exposure. Six anode holding positions, supplied with fixing nuts, washers, and threaded sealing plugs.

Application

  • Ships
  • Floating offshore units
