Specification

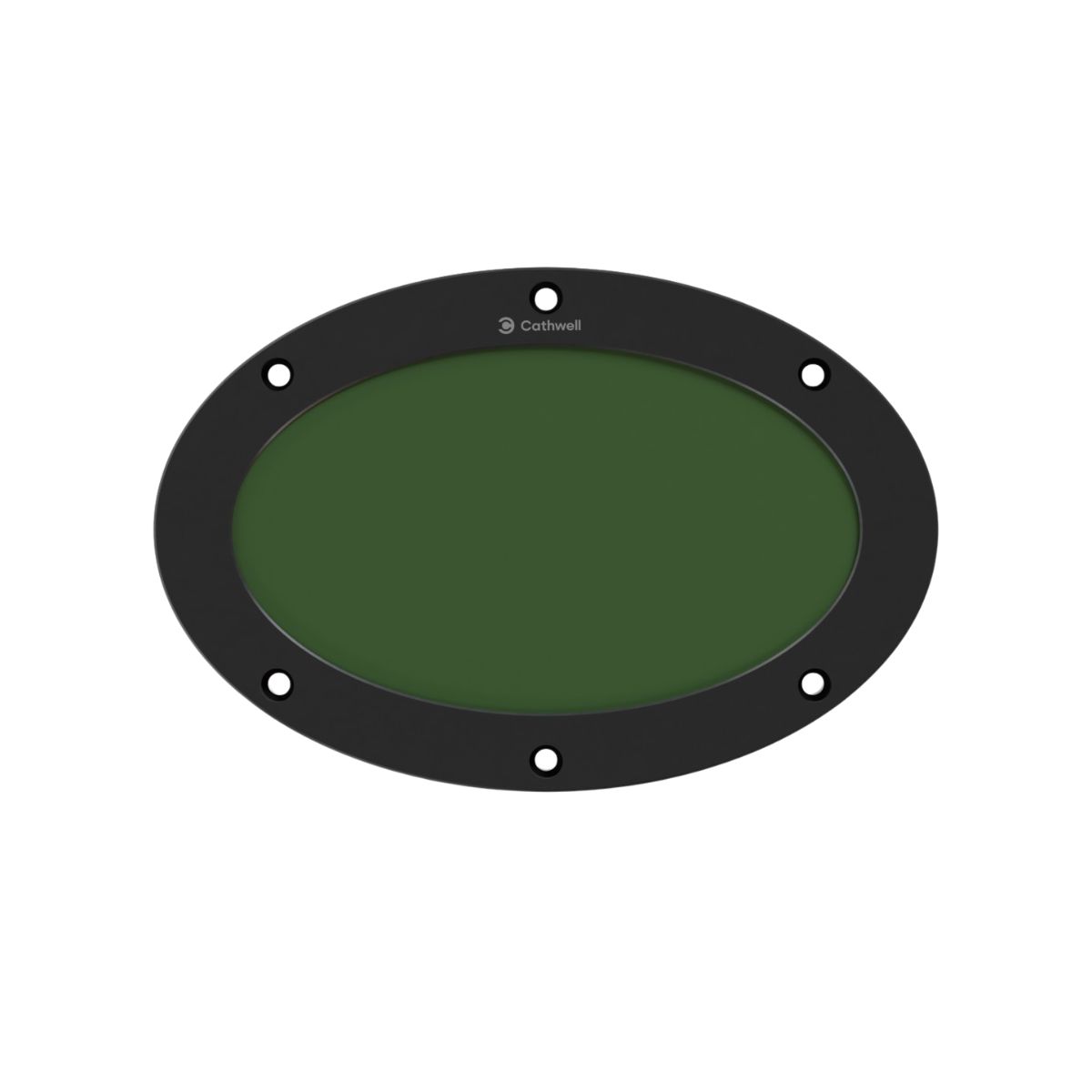

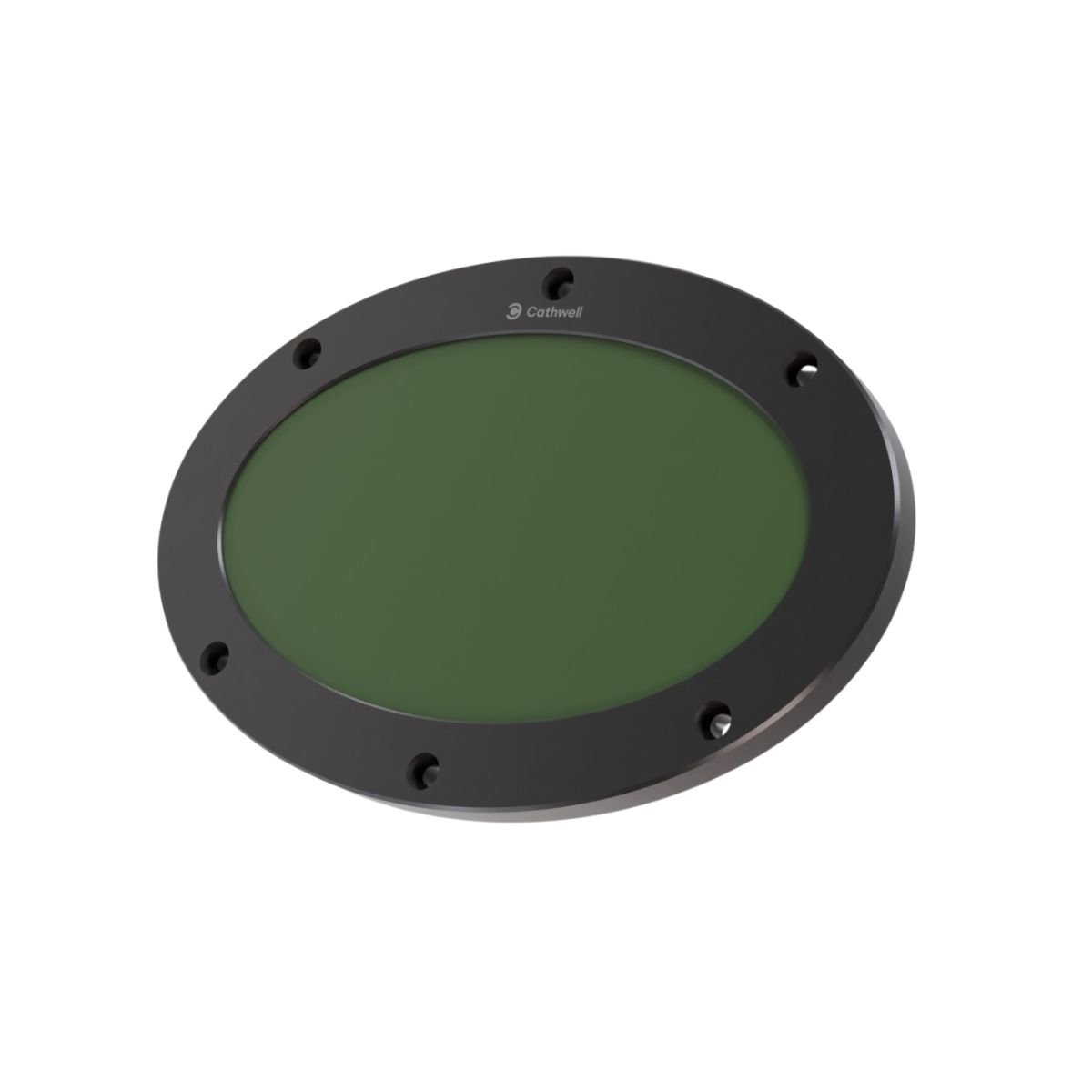

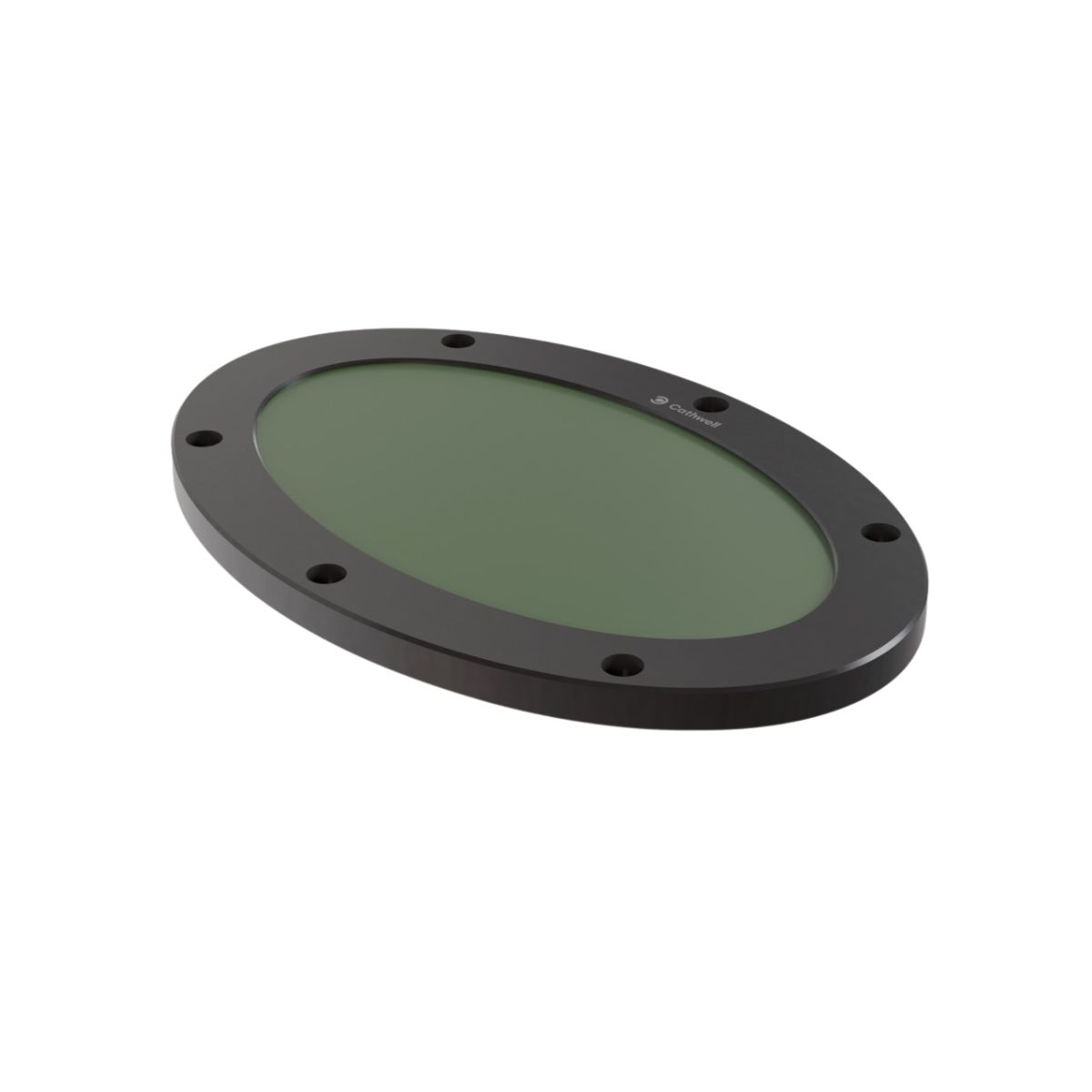

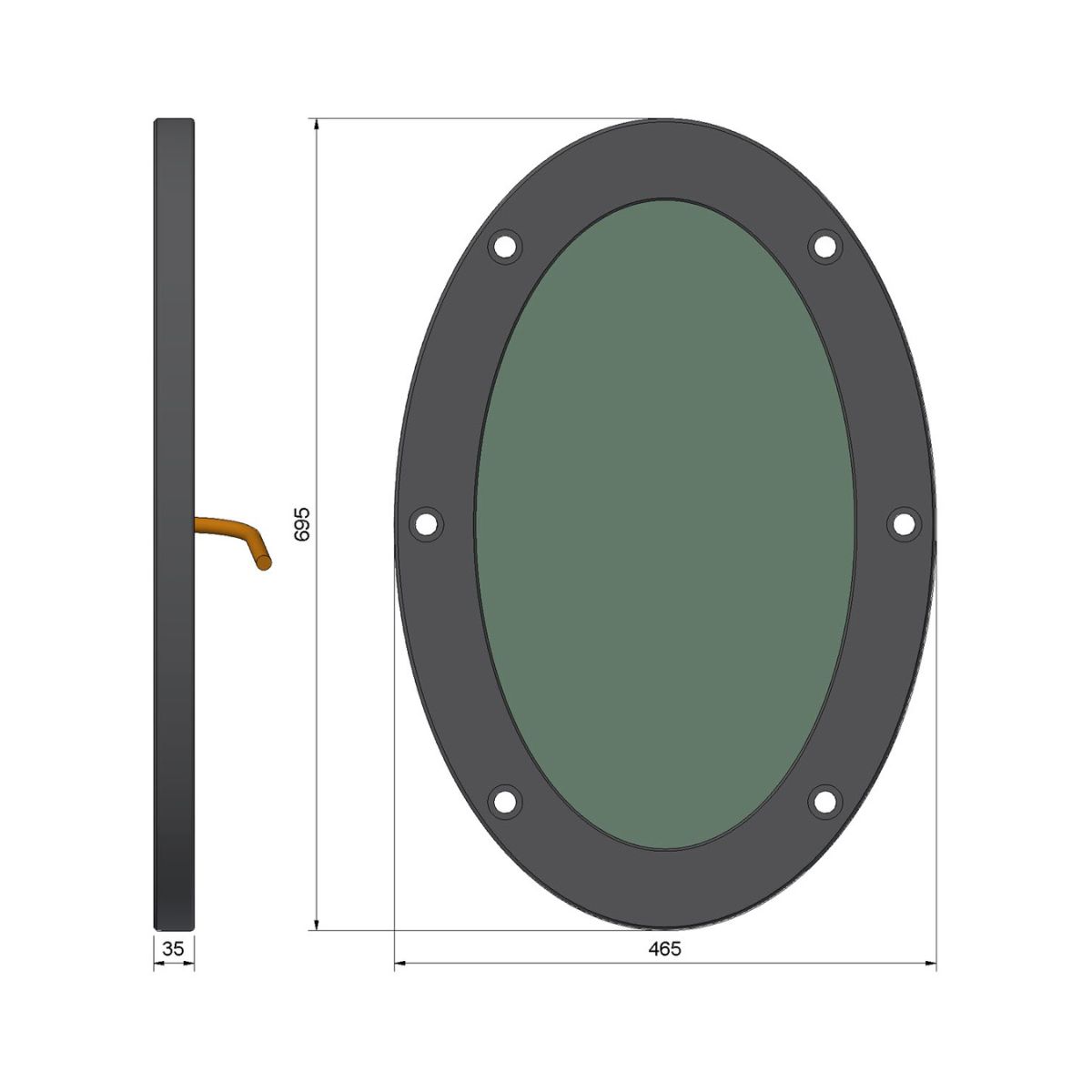

Active anode surface consisting of mixed metal oxide (MMO) coating applied on a titanium substrate. Capable of delivering up to 175 A subject to electrolyte resistivity and applied voltage. Elliptical outer dimensions defined by minor and major axes of 465 and 695 mm. Resin encapsulated body providing mechanical protection and electrical insulation for seawater exposure. Six anode holding positions, supplied with fixing nuts and washers for external fastening. Anode to be bedded onto waterproof sealing mastic during installation, with all stud holes sealed accordingly.
