Product number: 100222

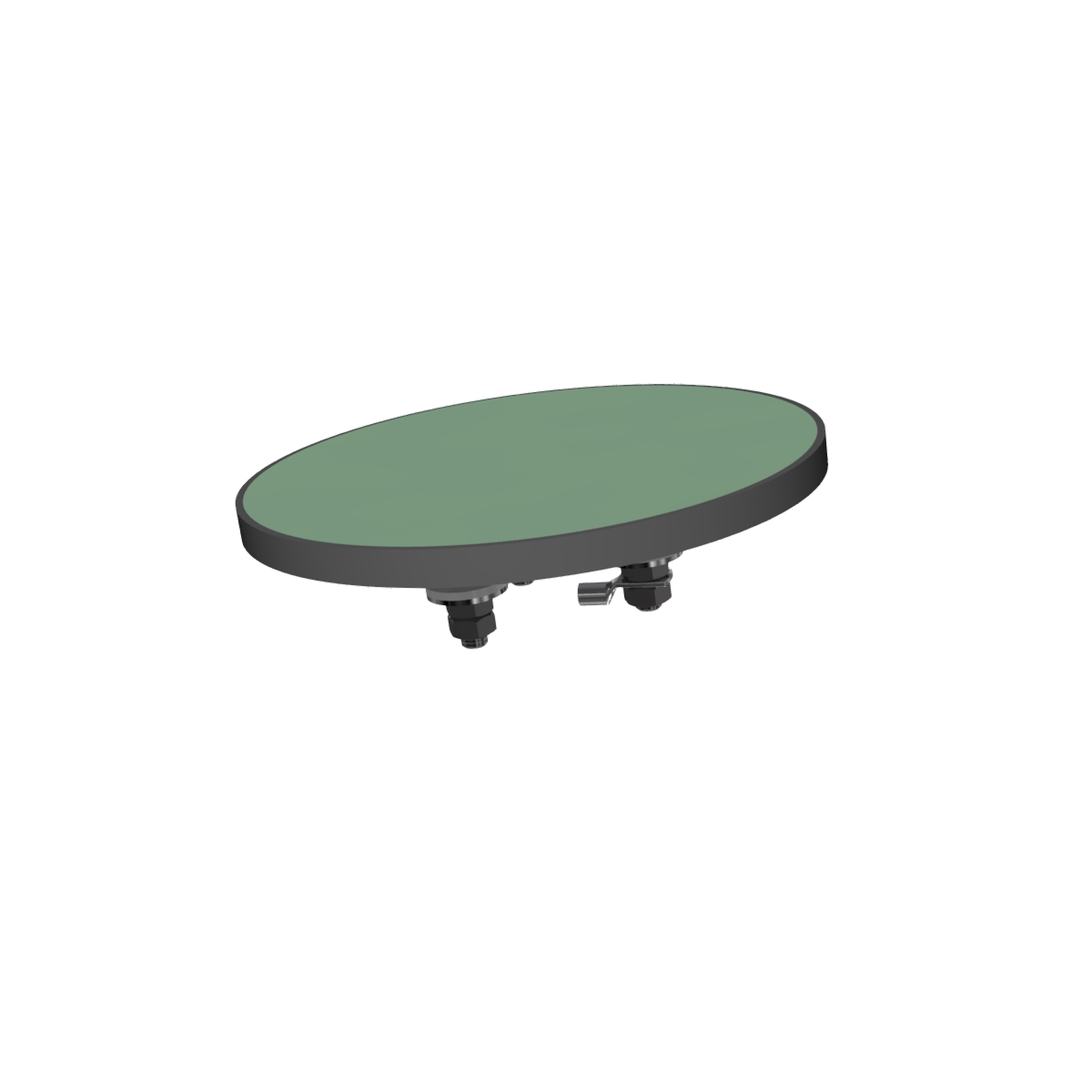

ICCP disc anode Ø218 MMO/Ti, ADS-1

Disc anode with internal bolting for recessed installation in ship’s hull. Diver changeable. Comes complete with replacement accessories. 50 to 75 A nominal current output capacity. Diameter 218 mm.

Normally in stock

Any questions about this product? Contact us

Specification

Anode surface of mixed metal oxide (MMO) applied on pure titanium (Ti) base. 50 to 75 A nominal current output capacity. More than 20 years lifespan based on nominal current load. Dimension: 218 mm diameter and 18 mm thick. Weight: 1.9 kg. 3 x internal fastening bolts. Diver changable. Water proof neoprene incapsulation. Molded backside with embossed sealing rings.

Option

Can be supplied complete with cofferdam (cofferdams applicable only for newbuildings or retrofit installations).

Application

  • Ships
  • Floating offshore units
  • Wind turbines
