Product number: 100149

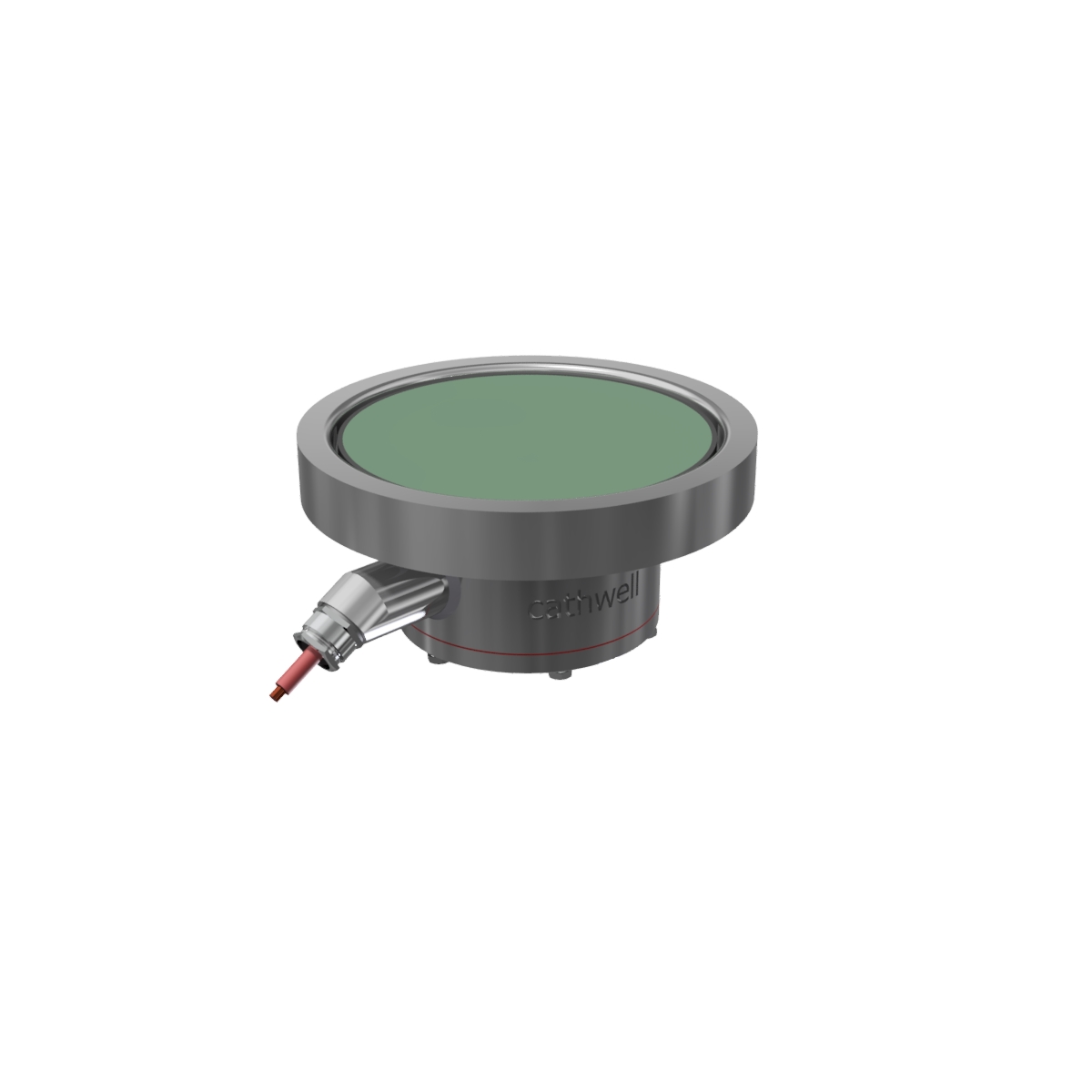

ICCP disc anode Ø218 MMO/Ti w/cofferdam, ADS-1

Disc anode complete with steel cofferdam, designed for recessed installation on ship’s hull. 50 to 75 A current output. Internal bolting and water proof incapsulation. Prepared for ice class application and installation in void space and water tanks. Diver changable. Comes complete with mounting accessories.

Normally in stock

Any questions about this product? Contact us


Cofferdam steel quality equivalent to S355J2. Designed for ice class application and installation in both void space and water tanks. Cofferdam outer diameter: 264 mm (requires 268 mm shell plate hole). Anode surface of mixed metal oxide (MMO) applied on pure titanium (Ti) base. 50 to 75 A nominal current output capacity. More than 20 years lifespan based on nominal current load. Anode dimension: 218 mm diameter and 18 mm disc thickness. 3 x internal fastening bolts. Diver changable. Water proof neoprene incapsulation. Molded backside with embossed sealing rings. Total weight: 18 kg.


  • Ships
  • Floating offshore units
  • Wind turbines
