Product number: 101170

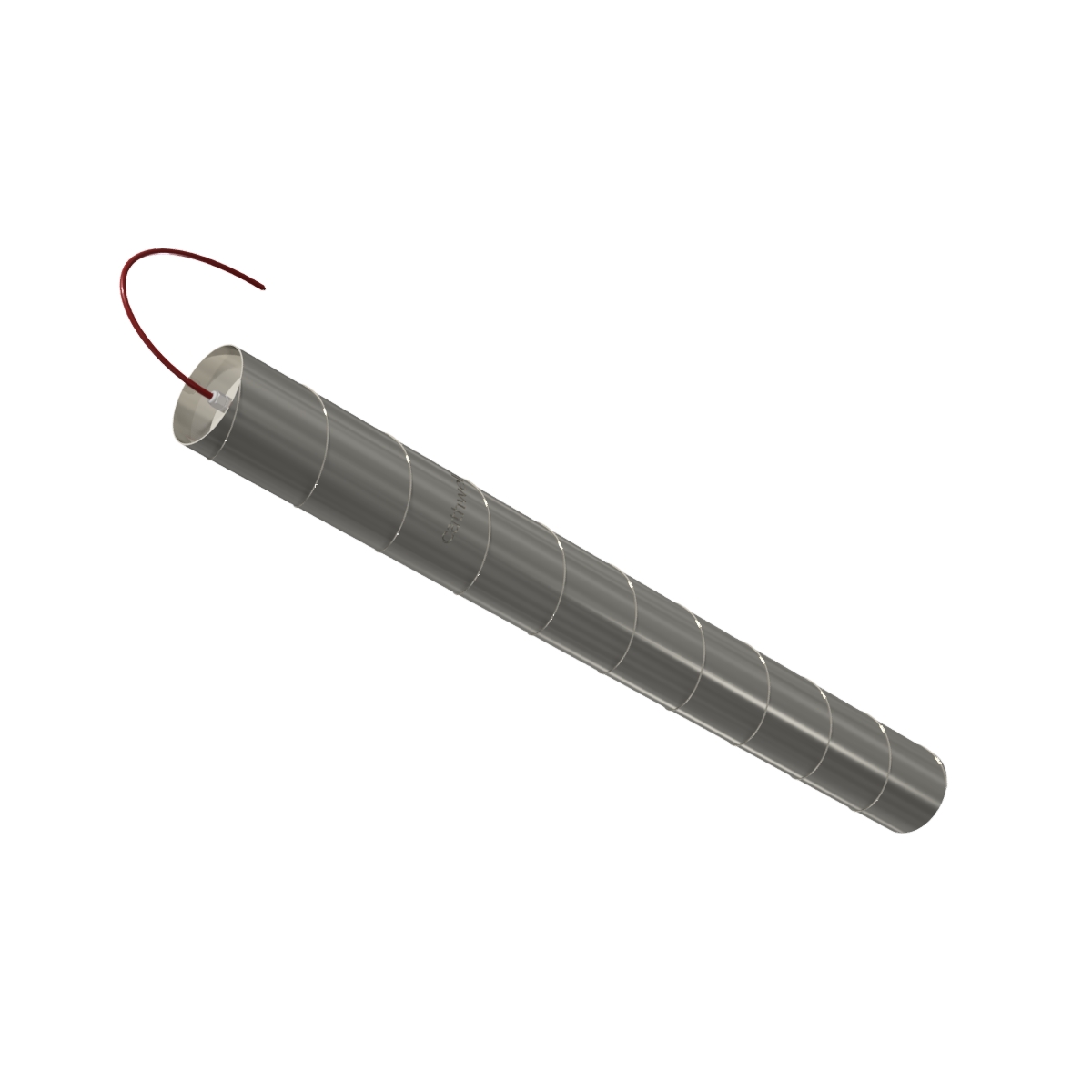

ICCP rod anode Ø65 x L1525 FeSiCr in canister

FeSiCr rod anode pre-packaged in steel canister with backfill. Designed for buried application. Comes with 1 m triple isolated, steel armoured 16 mm² Cu cable.

Normally 7 weeks

Any questions about this product? Contact us

Specification

Single ended solid high silicon iron, FeSiCr rod anode in galvanised steel canister with coke breeze backfill. Application in buried soil condition. Anode dimension: Ø65 x 1525 mm. Canister dimension: Ø200 x 2000 mm. Anode weight: 38 kg. Total weight with canister: 112 kg. Pre-fabricated with 1 m triple isolated, steel armoured 16 mm² Cu cable.

Option

Can be delivered with cable lengths according to request.

Application

  • Pipelines
  • Storage tanks
  • Foundations
