Product number: 101702

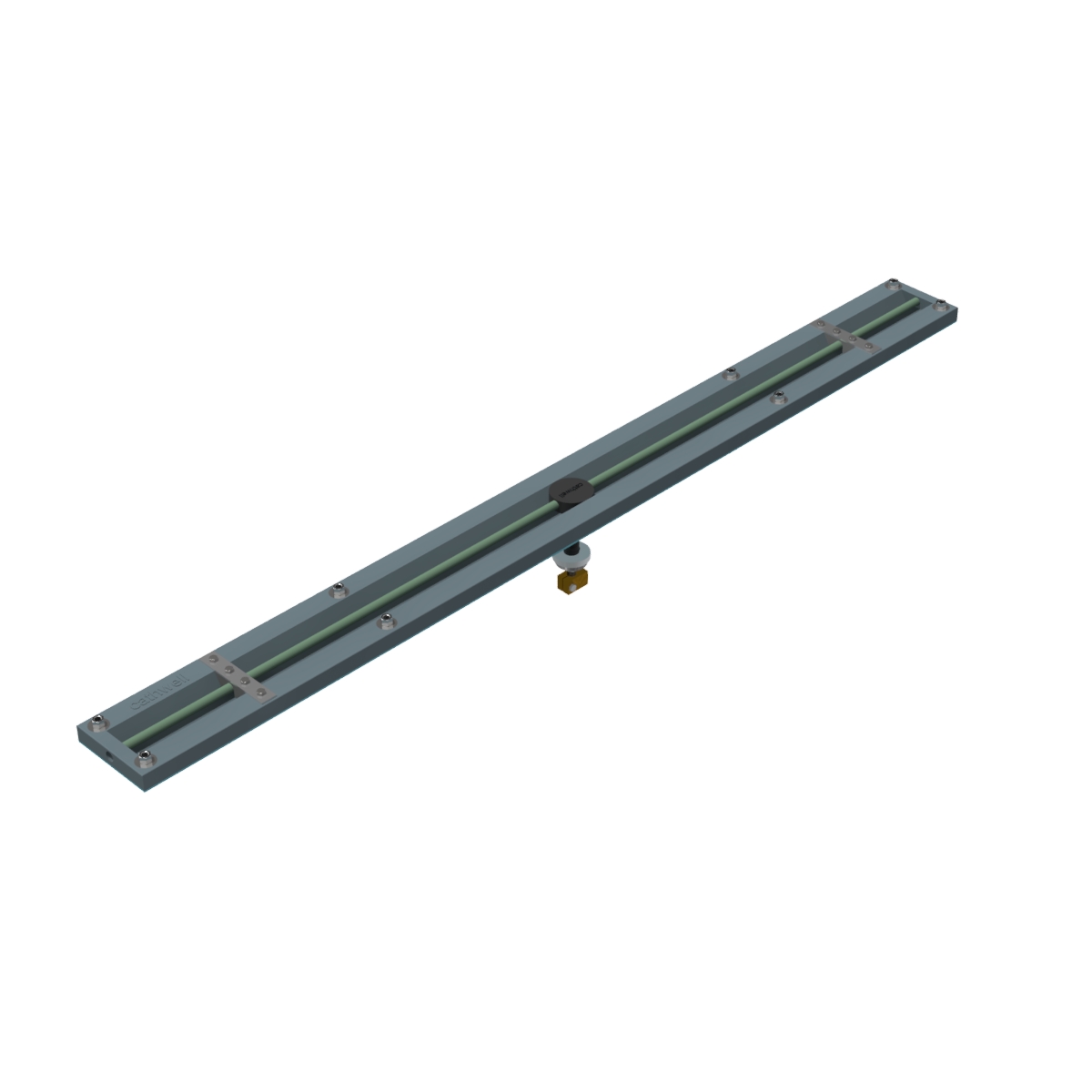

ICCP rod anode Ø16 x L1980 MMO/Ti, ARS-10

Rod anode with PE holder for hull installation. Comes complete with replacement accessories. 150 to 200 A output capacity. Dimension (included PE holder): 2000 x 170 x 30 mm (LxWxH).

Normally in stock

Any questions about this product? Contact us

Specification

Rod anode surface of mixed metal oxide (MMO) applied on pure titanium (Ti) base. 150 to 200 A nominal current output capacity. More than 15 years lifespan based on nominal current load. Dimension (included PE holder): 2000 x 170 x 30 mm (LxWxH). Weight (included PE holder): 14.5 kg. Assembled by 8 x yard supplied M12x35 studbolts and 1 centred power connection. Insulation, clamp and clamp washers in POM material.

Option

Can be supplied complete with cofferdam (cofferdams applicable only for newbuildings or retrofit installations).

Application

  • Ships
  • Floating offshore units
