Product number: 110000

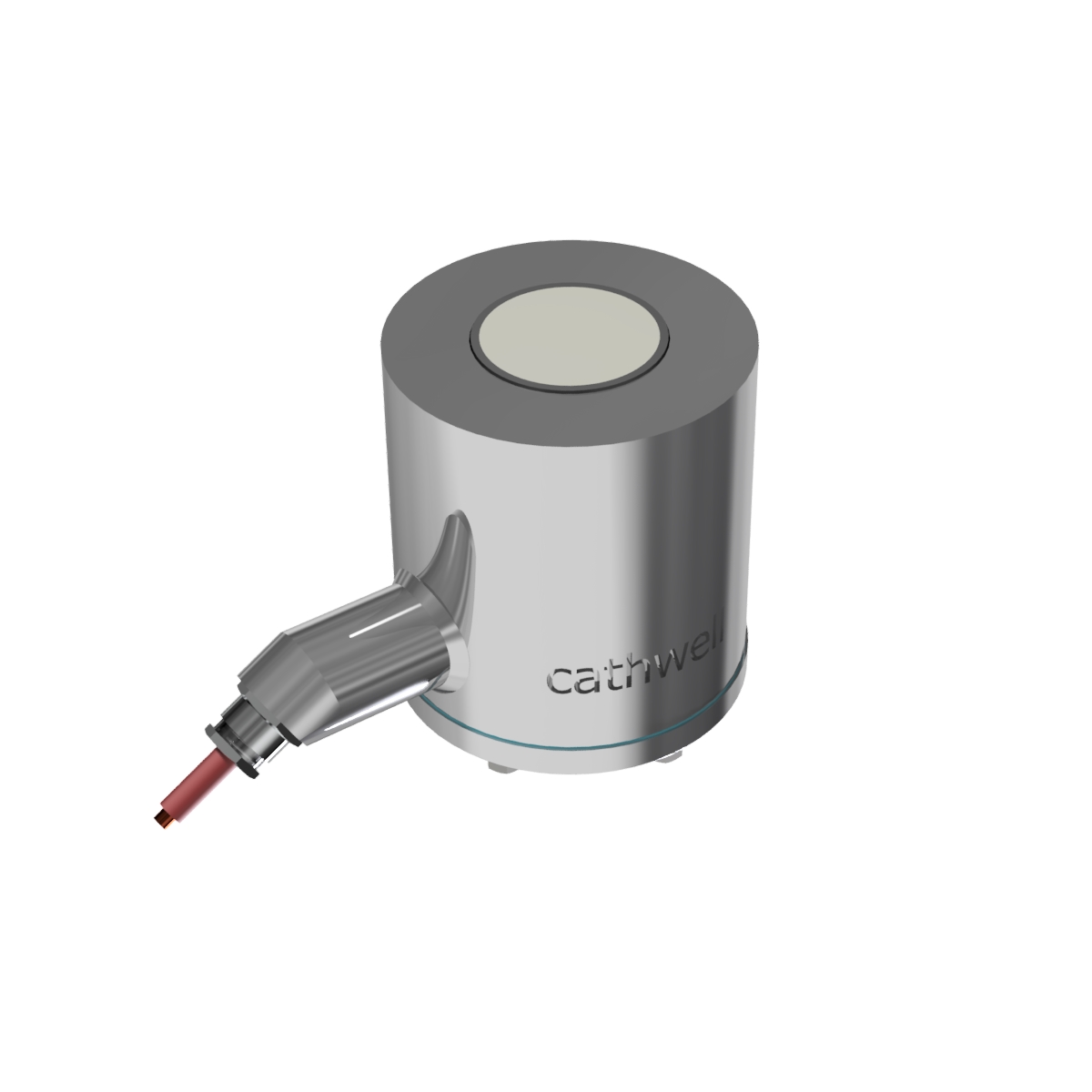

ICCP reference cell Ø68 Zn w/cofferdam, RSH

RSH reference cell complete with steel cofferdam, designed for recessed installation on ship’s hull. +/- 30 mV accuracy. Internal bolting and water proof incapsulation. Diver changable. Prepared for installation in void space and water tanks. Diver changable. Comes complete with mounting accessories.

Normally in stock

Any questions about this product? Contact us

Specification

Cofferdam steel quality equivalent to S355J2. Designed for ice class application and installation in both void space and water tanks. Cofferdam outer diameter: 130 mm (requires 134 mm shell plate hole). Zinc based reference cell surface with +/- 30 mV measurement accuracy. Application in salt water or saline water conditions. 10 years nominal lifespan. Cell dimension: 68 mm diameter and 18 mm thick. 1 x internal fastening bolt. Diver changable. Water proof neoprene incapsulation. Molded backside with embossed sealing rings. Total weight: 11 kg.

Application

  • Ships
  • Floating offshore units
  • Wind turbines
