Product number: 110067

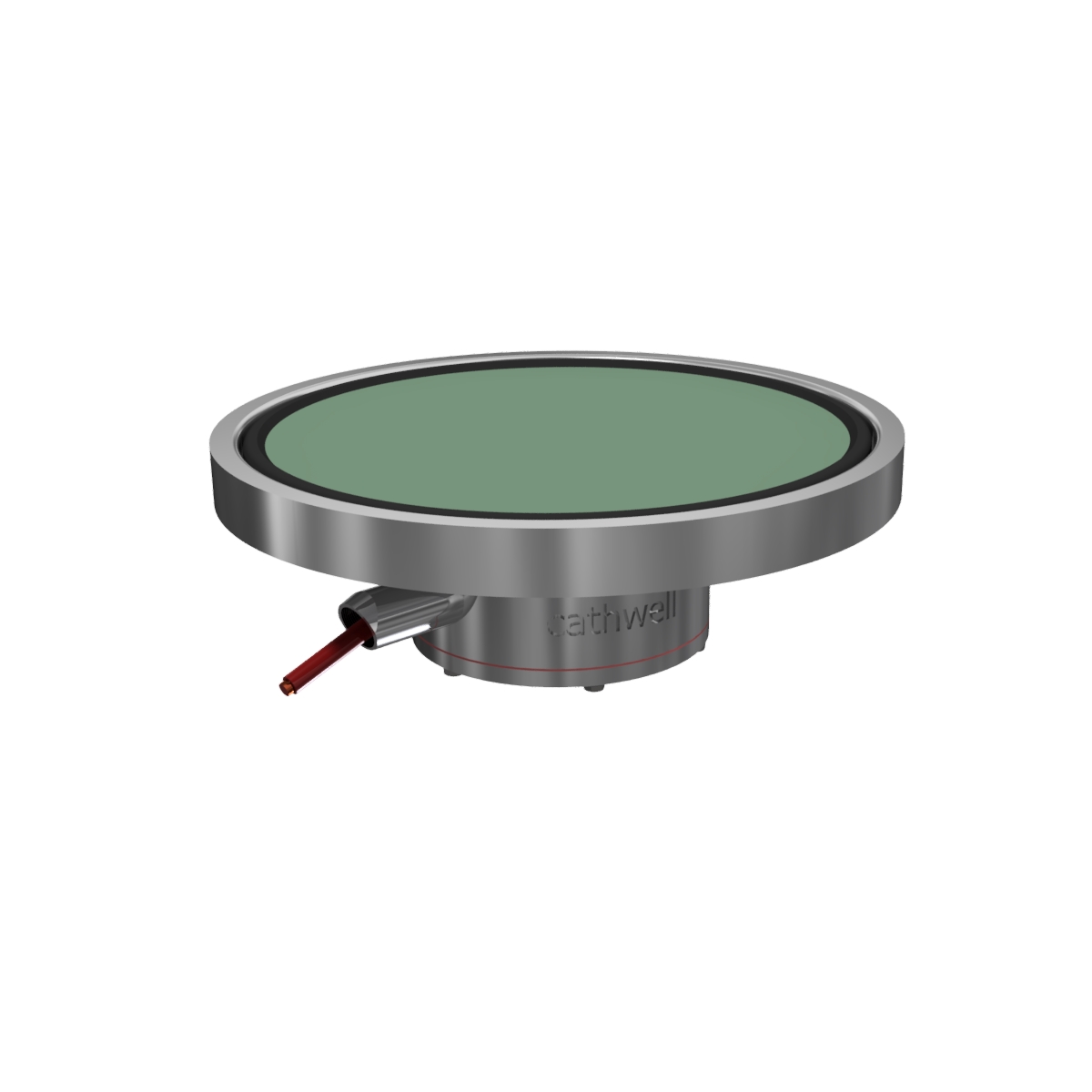

ICCP disc anode Ø436 MMO/Ti w/cofferdam, ADS-3

Disc anode complete with steel cofferdam, designed for recessed installation on ship’s hull. 100 to 150 A current output. Internal bolting and water proof incapsulation. Diver changable. Prepared for installation in void space and water tanks. Diver changable. Comes complete with mounting accessories.

Normally in stock

Any questions about this product? Contact us

Specification

Cofferdam steel quality equivalent to S355J2. Designed for ice class application and installation in both void space and water tanks. Cofferdam outer diameter: 484 mm (requires 488 mm shell plate hole). Anode surface of mixed metal oxide (MMO) applied on pure titanium (Ti) base. 100 to 150 A nominal current output capacity. More than 15 years lifespan based on nominal current load. Anode dimension: 435 mm diameter and 18 mm disc thickness. 4 x internal fastening bolts and 1 centred power connection. Diver changable. Water proof neoprene incapsulation. Molded backside with embossed sealing rings. Total weight: 54 kg.

Application

  • Ships
  • Floating offshore units
  • Wind turbines
