Product number: 101239

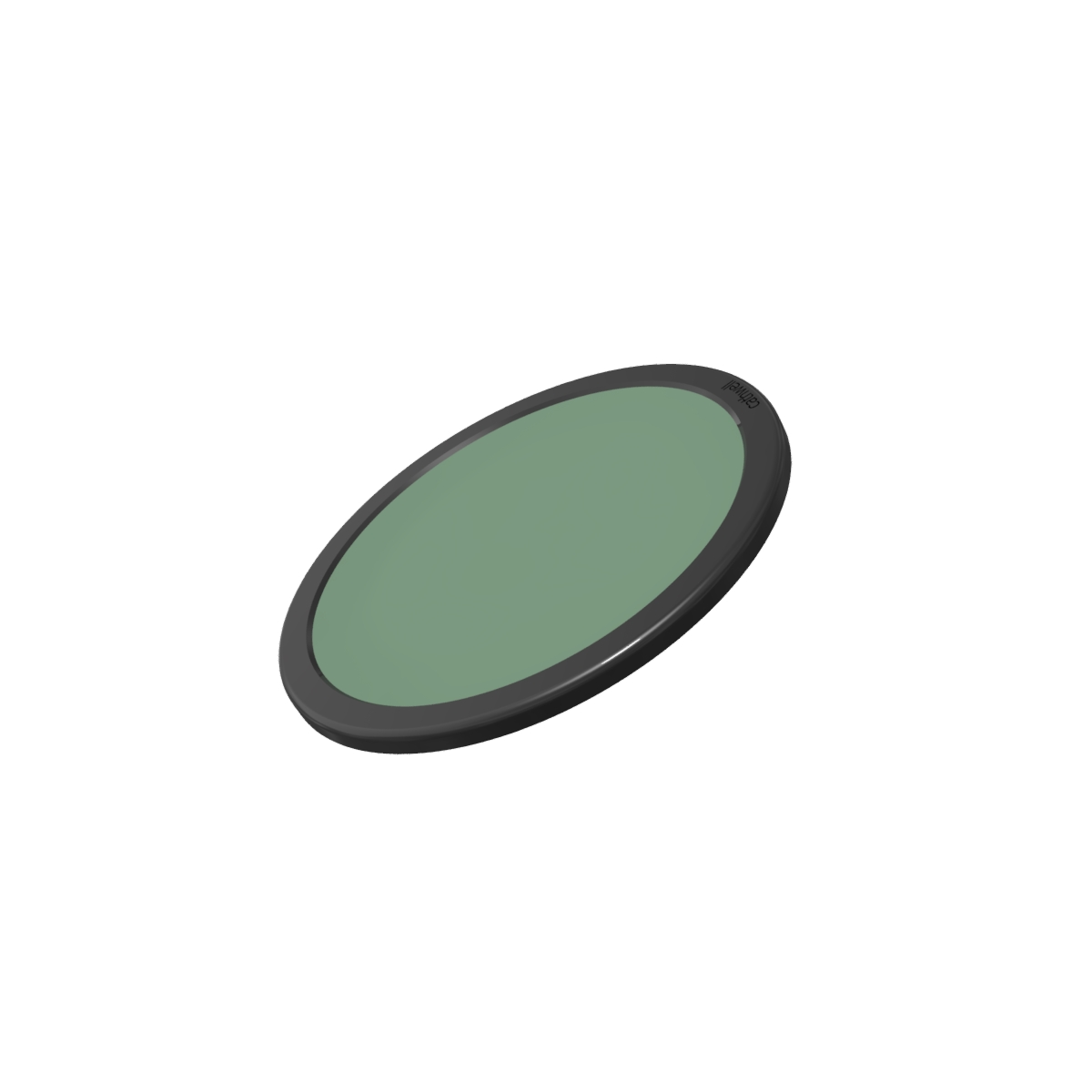

ICCP disc anode Ø370 MMO/Ti, ADS-2

Disc anode with internal bolting for recessed installation in ship’s hull. Diver changable. Comes complete with replacement accessories. 75 to 100 A max current output. Diameter 370 mm.

This product is type approved by Bureau Veritas.

Normally in stock

Any questions about this product? Contact us

Specification

Anode surface of mixed metal oxide (MMO) applied on pure titanium (Ti) base. Intended max output range: 75 to 100 A. Dimension: 370 mm diameter and 16 mm thick. Weight: 5.1 kg. 4 x internal fastening bolts and 1 centred power connection. Diver changable. Water proof neoprene incapsulation. Molded backside with embossed sealing rings.

Option

Can be supplied complete with cofferdam (cofferdams applicable only for newbuildings or retrofit installations).

Application

  • Ships
  • Floating offshore units
  • Wind turbines
